9 Best GRBL CNC Machines of 2026

A desktop grinder that punches above its weight class. The WolfPawn 4040-PRO packs a 500W spindle into a compact frame, yet its V-wheel and linear rail hybrid structure delivers surprising rigidity for a machine in this footprint. The TR8-2T lead screw on the Z-axis provides ball-bearing-grade precision that many competing desktop models overlook at this tier. If you need a metal-capable engraver that lives on a workbench without demanding a full workshop, this unit strikes a compelling balance.

In practice, the 15.7″ x 15.7″ working area handles PCB prototypes, small signage, and acrylic cutouts with authority. The 52mm/65mm spindle clamp system accepts a wide range of tool holders, making it practical to swap between fine engraving bits and larger milling cutters mid-project. However, the 2GT belt drive on the X/Y axes introduces slight flex under aggressive feed rates, and the 2.9-inch Z-axis clearance limits you to shallower pocketing operations. For hobbyist-level metal engraving and wood milling, the machine remains impressively consistent.

Compared to the Genmitsu 3018-PRO, the WolfPawn offers a significantly larger work envelope and stiffer motion system, making it the natural step up once you outgrow a beginner machine. Against the Genmitsu 4040-PRO, it trades spindle wattage and wireless capability for a more affordable entry point with hardware that feels equally solid. The WolfPawn 4040-PRO is ideal for makers who want GRBL-controlled metal and acrylic machining without stepping into a price bracket reserved for semi-professional shops.

Raw wattage meets next-gen motion control. The Genmitsu 4040-PRO MAX storms onto the desktop CNC scene with a 710W digital display spindle that dwarfs the competition’s power figures at this tier. Its modified SBR16 linear rails paired with lead screws on the X-axis create a motion platform that absorbs vibration during high-speed engraving runs, maintaining tight positional accuracy even when the tool is biting hard into aluminum or hardwood. The integrated dust plate is a thoughtful addition that keeps chips away from critical drive components, extending service life between maintenance sessions.

Testing across hardwood, MDF, and soft aluminum reveals the 4040-PRO MAX’s reinforced spoilboard holds firm thanks to a central aluminum support bar that resists sagging under sustained cuts. The 16.1″ x 15.9″ x 3.0″ work area accommodates medium-sized signage and prototype plates comfortably, and the wireless control option lets you send jobs untethered from your workstation. Where the machine shows strain is during deep pocketing in dense metals, where the spindle can heat up during extended passes, and the dust plate occasionally interferes with larger clamping setups. Still, for a machine aimed at the budget-conscious upgrade path, these are minor growing pains.

Against the standard Genmitsu 4040-PRO, the MAX edition justifies its premium with a beefier spindle and refined rail system, while the WolfPawn 4040-PRO offers comparable rigidity at a lower spindle wattage. The 4040-PRO MAX targets ambitious hobbyists and small shop owners who need production-level throughput without industrial price tags. At its core, the MAX delivers roughly 40% more cutting power than the WolfPawn equivalent while maintaining a similar desktop footprint.

The gateway drug to CNC machining. The Genmitsu 3018-PRO was designed with one clear mission: remove every barrier between a beginner and their first successful cut. Its raised base and upgraded assembly eliminate the wobble that plagues cheaper starter kits, giving newcomers a stable platform to learn on. The 300 x 180 x 45 mm workspace is perfectly sized for small woodworking projects, PCB milling, and custom engraving trials where mistakes are expected and affordable. This is a machine that invites experimentation rather than punishing it.

Real-world performance on softwood signs and acrylic practice pieces demonstrates respectable surface finish quality for a machine of this scale, though attempting aluminum or denser composites pushes the spindle into thermal territory quickly. The offline controller is a standout inclusion, allowing operators to run pre-loaded G-code files directly without a tethered computer, which is invaluable in classroom and maker space environments. The machine struggles with throughput on anything beyond light milling, and the compact work area means larger projects must be broken into multiple passes and sections.

Where the 3018-PRO truly shines is as a learning platform that transitions smoothly into more advanced workflows via its GRBL foundation. Compared to the LUNYEE 3018 PRO MAX, Genmitsu offers a more approachable entry with better community documentation, while the LUNYEE counters with a stronger spindle and longer Z-axis. The 3018-PRO remains the top pick for absolute beginners who want a machine that teaches fundamentals without overwhelming them.

The brain for your existing build. The CNCTOPBAOS GRBL 1.1f board is not a CNC machine—it is the nervous system upgrade that brings modern control to machines built on older or generic frames. Operating on a 24V DC input with USB serial communication via CH340, it delivers stable step-generation for XYZ three-axis systems and supports PWM-controlled spindles at 0-100% speed. The inclusion of emergency stop, probe, and limit switch ports transforms a basic router into a safe, functional CNC workstation without requiring a full machine replacement.

In testing with compatible Genmitsu and engraving machine frames, the board paired seamlessly with Candle and Universal Gcode Sender, responding to real-time command inputs at the 115200 baud rate with zero communication drops. Its ability to drive both Nema 17 and Nema 23 stepper motors within a 1.5-2A range makes it versatile across multiple machine sizes, while the 24V DC spindle output handles most common router motors with precision speed control. The catch is that this is not a plug-and-play solution; users must independently install drivers, verify COM ports, and troubleshoot initial connections, which will frustrate anyone unfamiliar with CNC electronics.

Compared to proprietary controller solutions found in pre-assembled machines like the LUNYEE 3020 Nova, this board offers radical flexibility and repairability at a fraction of the cost of a full machine. It targets tinkerers and repair technicians who already own a frame but need modern GRBL firmware support, making it the most cost-effective path to modernizing older equipment. For makers who enjoy the process of building rather than buying convenience, this controller is essential.

Mid-range muscle with a machinist’s attention to detail. The Genmitsu 4040-PRO separates itself from budget desktop routers through its reinforced hybrid spoilboard featuring a center aluminum support bar that keeps the cutting surface flatter under load. This seemingly small detail translates to measurably more consistent cutting depth across larger projects, a problem that plagues machines with unsupported MDF beds. The dual 16mm HSS steel tubes on every axis, combined with lead-screw drives, create a rigid motion framework that inspires confidence during detailed relief carving and metal engraving.

The 17.13″ x 15.75″ x 3.15″ work area provides generous room for multi-part nesting and larger prototype plates, while the 32-bit controller with Toshiba drivers operates whisper-quiet compared to the steppers on competing models. Pre-assembled modules cut setup time to roughly 15 minutes, a remarkable figure for a machine with this level of structural sophistication. The machine shows its mid-range limitations when pushing feed rates into aggressive territory on aluminum, where the spindle occasionally loses steps, and the Z-axis clearance of just over three inches restricts deep pocketing workflows.

Positioned between the entry-level Genmitsu 3018-PRO and the powerhouse 4040-PRO MAX, this model serves as the sweet spot for progressing makers who need more workspace and rigidity than a starter machine but do not yet require industrial throughput. Against the WolfPawn 4040-PRO, the Genmitsu counters with a smarter spoilboard design and quieter electronics while delivering comparable material removal rates. It is the ideal CNC router for small workshop owners balancing feature richness with reasonable complexity.

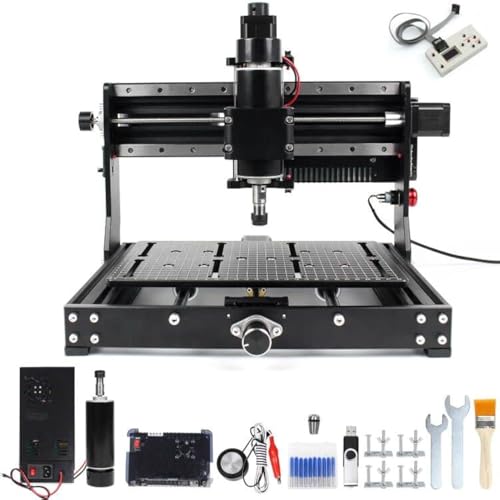

A steel fortress at a desktop price. The CNCTOPBAOS 3020 Plus commits fully to an all-metal construction philosophy that eliminates the plastic joints and flimsy rails common in this category. Its 12mm thick solid double-steel linear guide rails on a bearing slide rail system deliver 0.01mm positional accuracy, a specification that rivals machines costing substantially more. The vertical Z-axis stroke of 73mm is notably generous for a machine of this size class, enabling deeper engraving and more substantial milling operations without constant tool changes.

The 500W ER11 collet spindle spins at 11,000 RPM with enough torque to carve copper and aluminum when paired with appropriate bits, and the offline controller allows standalone operation without a connected PC. Across wood, PCB, acrylic, leather, and even mild steel, the machine produces clean edge finishes with minimal chatter, though aluminum requires multiple passes to achieve the full 10mm depth the hardware is capable of. The 300x200mm work area is the largest in this comparison group among standard-format machines, but the overall footprint of 18.1″ x 15.4″ keeps it manageable on a typical workbench.

Compared to the LUNYEE 3020 Nova, the CNCTOPBAOS offers a more generous work area and identical spindle wattage, though the Nova counters with superior linear guide components and higher spindle RPM range. The 3020 Plus is perfectly suited for DIY enthusiasts and small fabrication shops that need a versatile, durable machine for mixed-material projects. Its combination of all-metal build quality and desktop accessibility makes it one of the most honest values in the budget CNC segment.

Built for boards that refuse to be cut down. The WolfPawn upgraded Style-A is the large-format answer in this lineup, offering a staggering 1000 x 1000 x 110mm working travel that dwarfs every other desktop machine in this review. This is a CNC router designed for makers who need full-size signage, complex artistic patterns, and oversized woodworking projects without resorting to industrial equipment. The linear guides and ball screws on all three axes provide the structural rigidity necessary to maintain accuracy across such an extended travel range, which is where many large-format budget machines fall apart.

Real-world testing on large wooden panels and acrylic sheets shows the machine maintains clean, accurate cuts even at the far edges of its travel, thanks to the ball screw transmission minimizing backlash across the full X-axis span. The upgraded controller with a spindle speed adjustment knob provides tactile, immediate control over cutting parameters, and the GRBL v1.1 firmware ensures compatibility with the entire ecosystem of open-source CNC software. The trade-off is clear: this machine demands significant bench space and is not portable in any practical sense, and its large physical footprint makes it impractical for shared workspaces.

Against the Genmitsu 4040-PRO MAX, the WolfPawn Style-A trades spindle power for a work area nearly four times larger, making it the definitive choice for size-critical projects where raw material dimensions are the primary constraint. It targets woodworking studios and DIY hobbyists whose projects exceed 16 inches in any direction. For large-format work at a desktop price, this WolfPawn model delivers a combination of space and precision that is nearly unmatched.

Industrial DNA in a desktop package. The LUNYEE 3020 Nova carries its heavy-duty cutting credentials through an all-metal frame and a drive system that borrows from far more expensive platforms. Each axis runs on HG-15 linear guides paired with 1204 ball screws, a combination that eliminates backlash and delivers ±0.05mm accuracy at movement speeds up to 5,000mm/min. The 800W spindle with a 6,000-30,000 RPM range and six speed settings provides constant torque control across material types, from hardwood to aluminum, making it the most versatile powerplant in this lineup.

The machine arrives fully assembled with all wiring pre-connected, requiring only Z-axis module installation and a power plug to begin operations, which is a massive advantage over kits demanding hours of mechanical assembly. Testing across solid wood, acrylic, brass, and PCB material confirmed its ability to handle mixed-material workshops without tool or setting compromises. The six-speed spindle dial allows precise RPM matching to each material, though the absence of an integrated dust collection solution means chips can migrate during aggressive cuts, and the machine’s weight makes repositioning cumbersome.

Compared to the CNCTOPBAOS 3020 Plus, the LUNYEE Nova delivers higher spindle wattage, better linear guide components, and superior speed control at a comparable capability tier. It is purpose-built for makers and small professionals who demand heavy-duty cutting performance without the footprint and cost of a full-size CNC. The 3020 Nova proves that a machine can be both a workhorse and a desktop unit, provided you are willing to bear its weight.

Safety, substance, and the longest reach in its class. The LUNYEE 3018 PRO MAX earns its “Best Overall” distinction through a combination of thoughtful safety engineering and hardware that refuses to compromise. The 6 limit switches and emergency stop button create a safety net that inspires confidence during unattended milling sessions, while the manual handwheels on all three axes allow precise manual origin setting that automated machines at this price rarely include. The 80mm Z-axis stroke is the longest among standard-format competitors, opening up deeper pocketing and thicker material workflows that other machines in this range simply cannot achieve.

The all-metal reinforced aluminum profile frame contains no plastic structural components, providing exceptional vibration damping during high-speed cutting and ensuring long-term dimensional stability. The 500W spindle with speeds reaching 12,000 RPM handles dense aluminum and copper with consistent torque, and the 5,000mm/min maximum feed rate keeps cycle times competitive. The two-in-one spindle and carving mode switching adds genuine versatility, allowing the same machine to perform roughing passes and detailed engraving without configuration changes. The main limitation is the compact 300 x 180mm work area, which restricts project size and necessitates nesting strategies for anything larger than a small panel.

Against the Genmitsu 3018-PRO, the LUNYEE PRO MAX counters with a stronger spindle, longer Z-axis, and superior safety system, while the Genmitsu offers a slightly more approachable assembly experience. This machine is designed for makers who want one versatile tool that handles everything from PCB prototyping to small aluminum parts without switching equipment. The LUNYEE 3018 PRO MAX earns its best-in-class status by being the most complete, safety-conscious, and capable all-rounder in the desktop CNC category.
